PAINTCOLLECTOR as an exhaust-air filter for paint spraying cabins and paint shops. It is used for wet particulate arrestance in varnishing and paint spray applications.<>
They are used in paint finishing systems and colour spraying plants to hold paint particles with its high particle holding capacity than regular filter medias.
The special fine filter media are made of %100 polyester fibres progressively compressed, fortified with a plastic binder (or thermally) into a solid and stable filter lap. The material is saturated with a dust-binding agent.
On the side of clean air, the medium is fixed with a special plastic protecting grid for preventing the release of the medium fibres.

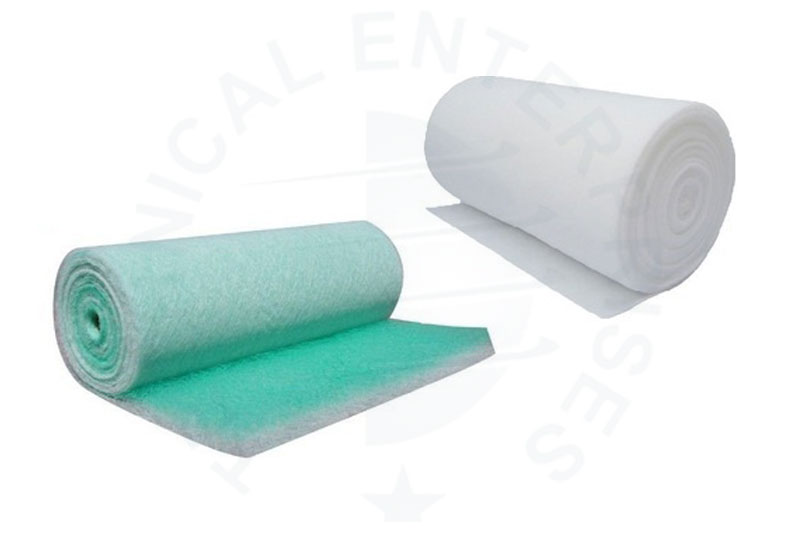

Technical Enterprises-FILTER mats are made of extremly regular glass fibres, whose density in-creases from the air-intake to the clean-air side. As a result of this progressive construction which is the most important characteristic for a high-performance fiberglass filter mats offer the following advantages:

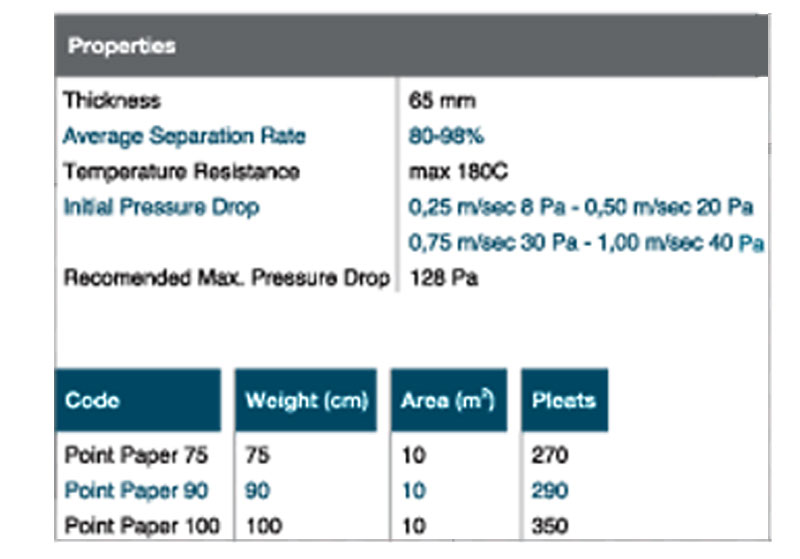

Cardboard filter pads has been speciallly designed to fit Average Separation Rate 80-98% spray booths both horizontally and vertically. The filter Temperature Resistance max 180C has a V-shaped design, with holes perfectly aligned. Initial Pressure Drop 0,25 m/sec 8 Pa -0,50 m/sec 20 Pa Cardboard filter pads have the advantage of 3-5 times 0,75 m/sec 30 Pa - 1,00 m/sec 40 Pa higher paint storage capacity than regular filter medias Recomended Max. Pressure Drop 128 Pa( approximately 18 kg/m2 ). The folded filters consist of recyclable cardboard. They are drawn to their proper size not until the installation takes place. Therefore storage and transportation costs are very low.
